How To Install Cab Lights On F350
Time Required
one - 2 hours
- Ford F250 LED Roof Cab Lights 8 steps
Member-Contributed Guide
An crawly fellow member of our community made this guide. It is not managed by iFixit staff.
Introduction
If your Ford F250 (or whatsoever other truck) does not come with LED roof cab lights, you lot can get some aftermarket LED cab lights to give it that gritty, off-road look.
-
-
Lower the headliner. You'll need to remove both visors and the overhead storage console.
-
Become your fingers where you tin grab the (4) metal clips to release.
-
Y'all will also demand to remove the commuter and passenger side A-pillar covers.
-
-
-
Get some painters record and record up the entire front area of the roof where you will exist installing the LED cab lights.
-
Mark the locations where y'all will be attaching each LED light and the holes that you will be drilling. (You lot can utilise a dry erase marking.)
-
-
-
Draw a line perpendicular to the sides of the truck and mensurate the altitude from the windshield molding by the commuter's side door. You lot will basically need to draw a horizontal direct line from both sides of the truck then find the center of the truck. Utilize the midpoint as a guideline and mensurate where you will be placing the residue.
-
-
-
You should take five lines to mark each of the LED roof lights.
-

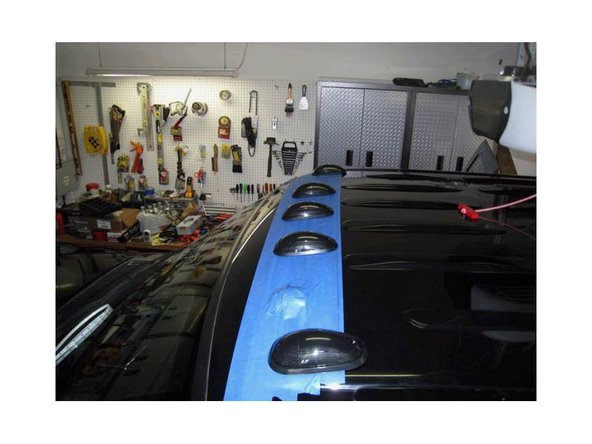

Mensurate half dozen.5 inches for each of the lines to mark the center hole. When you mark all the center holes, lay all of the LED cab lights in place to see if you like the wait.
-
-
-
Get some spare paper-thin laying effectually and trace out a template of the LED roof calorie-free. Marking the locations where you volition drill the holes and align the template onto the lines you lot drew so you know where all the holes will be drilled later on.
-
Double bank check all the locations.
-
-
-
Drill the holes through the painter'southward record.
-
Bolt downwards the LED cab lights onto the truck's roof.
-
The underside of the LED roof cab light shows the 3 locations that will need to be marked on the roof to drill.
-
-
-
Connect the wires. The plugs are polar sensitive, and so if information technology doesn't calorie-free up, yous will demand to flip it 180 degrees. You'll need to wire them upwardly in parallel and apply some electrical record and so they maintain a parallel wiring.
-
Tape the wire harness onto the reinforcement axle.
-
-
-
Route all the wire through the forepart map light assembly to complete installation.
-
Almost done!
Test to meet if your LED truck roof lights piece of work and enjoy!
Determination
Test to encounter if your LED truck roof lights work and enjoy!
